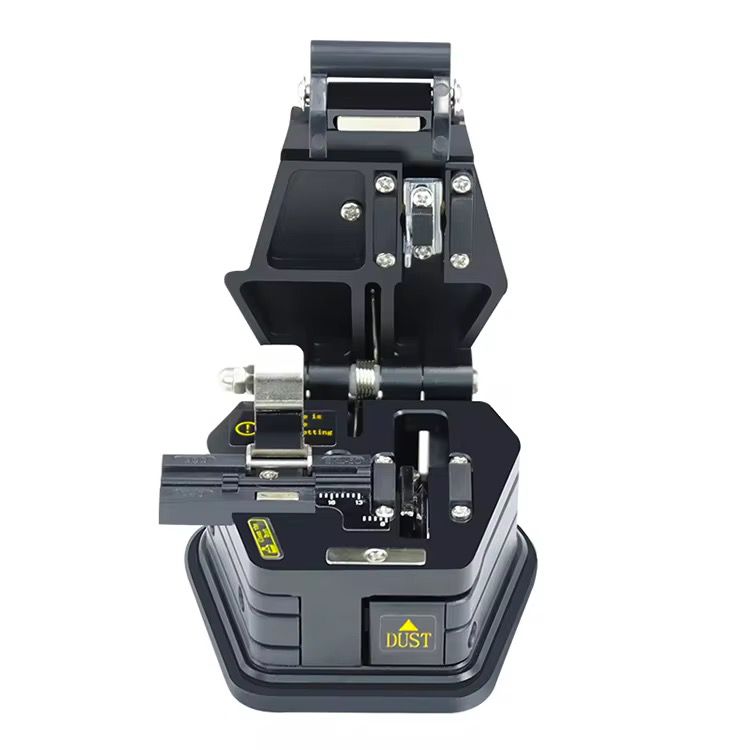

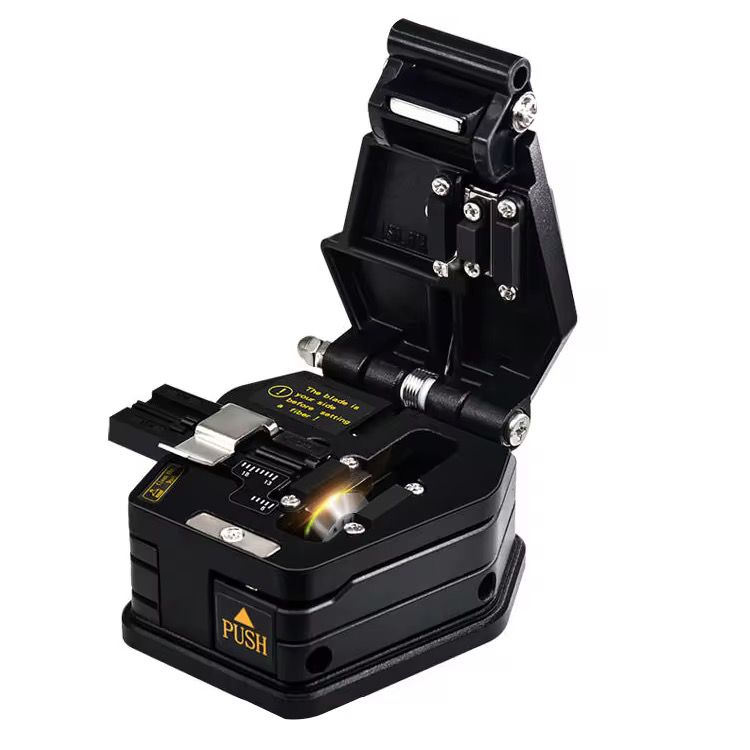

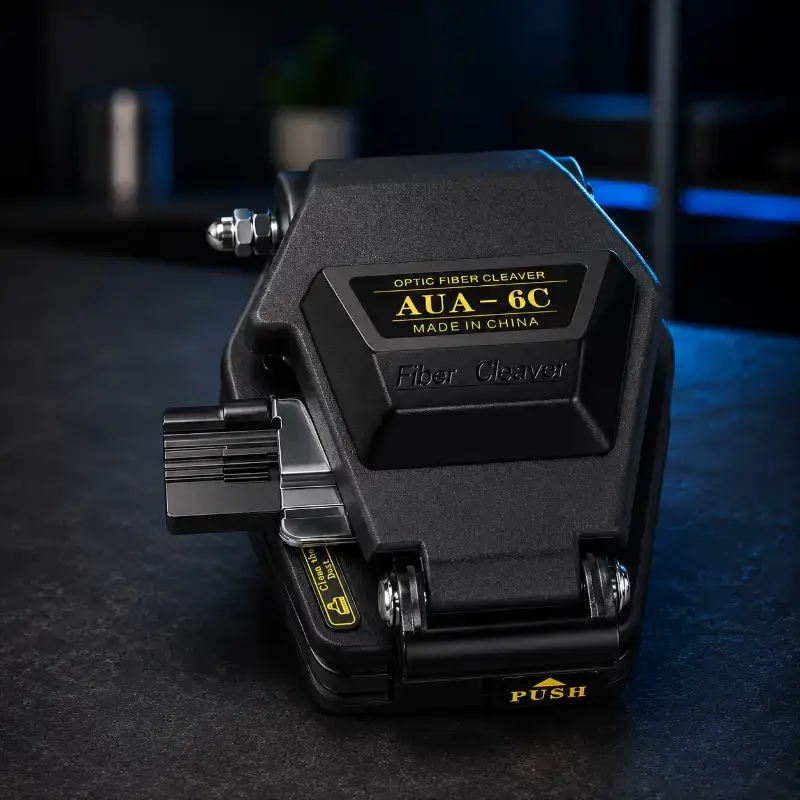

AUA-6C Automatic Fiber Optic Cleaver
Product Overview
The AUA-6C Automatic Fiber Optic Cleaver is a compact and high-precision fiber cutting tool designed for reliable optical fiber preparation. Its automatic blade-return mechanism, tungsten steel cutting blade and durable aluminum alloy construction provide stable operation and consistent fiber cleaving for FTTH, fiber splicing and telecom applications.
Key Features
- Automatic Blade Return: Features an automatic knife return mechanism for faster operation, improved efficiency and consistent cutting performance.
- 16-Facet Tungsten Steel Blade: Equipped with a high-hardness tungsten steel blade featuring 16 cutting end faces for extended service life and reliable cutting performance.
- Precision Fiber Cutting: Designed to provide clean and stable fiber cuts while helping reduce the risk of fiber breakage during operation.
- 0.8° Cutting Angle: Provides a flat fiber end-face with a cutting angle of approximately 0.8°, suitable for cold welding and fusion splicing applications.
- Durable Construction: Combines an aluminum alloy body with a tungsten steel blade for a compact and durable design.
- Compact & Portable: Small form factor makes the cleaver convenient for field technicians, FTTH installations and fiber maintenance work.
- Adjustment Tools Included: Supplied with wrenches for convenient blade adjustment and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Fiber Cutter / Fiber Optic Cleaver |
| Model | AUA-6C |
| Material | Aluminum Alloy + Tungsten Steel |
| Color | Black |
| Cutting Angle | Approximately 0.8° |
| Applicable Fiber Diameter | 125 μm |
| Blade Type | Tungsten Steel, 16 Cutting End Faces |
| Service Life | Approximately 48,000 Cuts |
| Fiber Cutting Length (Ø0.25 mm) | Approx. 9–16 mm |
| Fiber Cutting Length (Ø0.9 mm) | Approx. 10–16 mm |
| Working Temperature | -40°C to +80°C |
| Storage Temperature | -40°C to +80°C |
| Product Dimensions | Approx. 75 × 65 × 57 mm |
| Dimensions (Imperial) | Approx. 3 × 2.6 × 2.2 in |
Fiber Compatibility
The AUA-6C is designed for 125 μm optical fiber and supports the following fiber preparation lengths:
| Fiber Diameter | Cutting Length |
|---|---|
| Ø0.25 mm | Approx. 9–16 mm |
| Ø0.9 mm | Approx. 10–16 mm |
Applications
- FTTH Fiber Installation
- Fiber Optic Fusion Splicing
- Telecom Network Maintenance
- Fiber Cable Preparation
- Cold Welding Applications
- Optical Fiber Repair & Maintenance
- Field Technician Use
Product Highlights
- Automatic blade-return mechanism
- 16-facet tungsten steel blade
- Approximately 48,000-cut service life
- Approximately 0.8° cutting angle
- Supports 125 μm optical fiber
- Aluminum alloy construction
- Compact and portable design
- Suitable for FTTH and telecom applications
- Adjustment wrenches included
Professional Fiber Preparation: The AUA-6C combines automatic blade return, a 16-facet tungsten steel blade and compact construction to provide reliable and efficient optical fiber cleaving for FTTH and fiber splicing applications.
