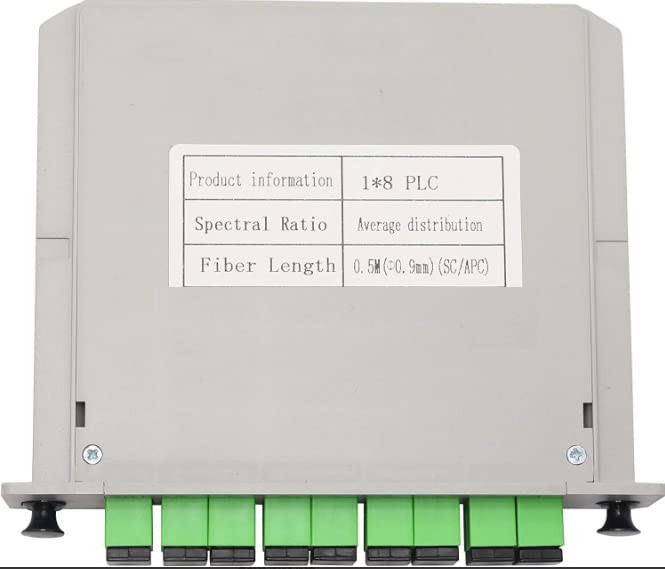

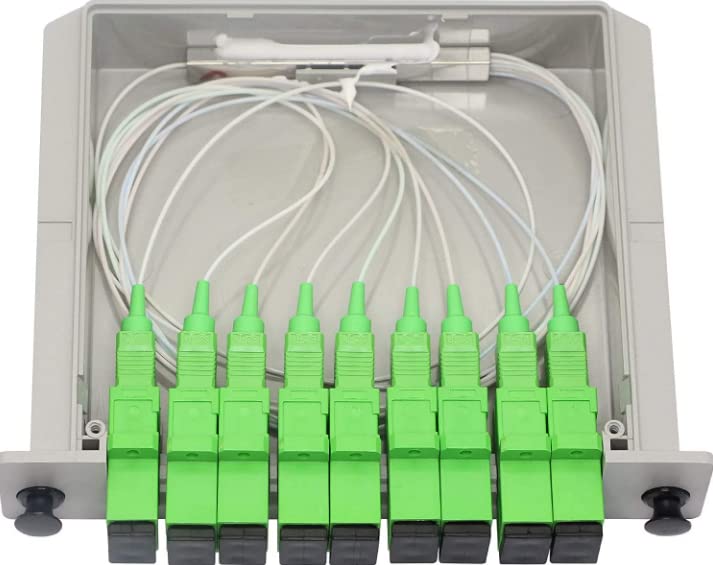

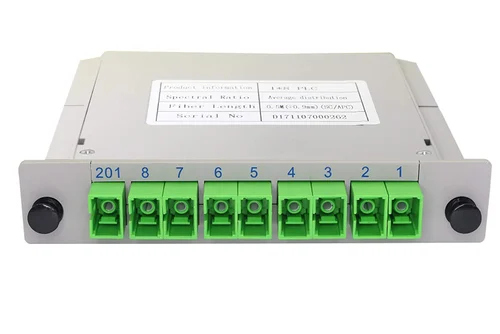

1X8 PLC (PLANAR LIGHTWAVE CIRCUIT) FIBER OPTIC SPLITTER WITH GREEN SC/APC SINGLE-MODE CONNECTOR

+ Free Shipping

Bullet point
Signal : Divides a single optical input signal into 8 distinct, uniform output channels.
Passive Technology: Operates as a completely passive component requiring no external electricity or battery power.
Low Signal Loss: Delivers high performance with minimal insertion loss and excellent spectral uniformity across all 8 ports.

Availability: 1000 in stock

Operating Wavelength: Wide operating bandwidth ranging from 1260 nm to 1650 nm, supporting EPON, GPON, and XG-PON network standards.
Insertion Loss: Low insertion loss, typically ≤ 10.5 dB to 10.7 dB across all channels.
Loss Uniformity: High channel-to-channel uniformity, typically ≤ 0.8 dB, ensuring all 8 outputs receive an identical signal strength.
Polarization Dependent Loss (PDL): Extremely low, typically ≤ 0.2 dB to 0.3 dB

Weight	0.44 lbs
Dimensions	5 × 3 × 0.98 in
