Technology: Uses silica glass waveguide circuits to split optical signals uniformly with low polarization dependence.Connector Type: Pre-terminated with green SC/APC (Angled Physical Contact) connectors, featuring an 8-degree angle polish to minimize back-reflection.Fiber Mode: Single-mode (typically G.657A1 bend-insensitive fiber for tight routing spaces).Operating Wavelength: 1260 nm to 1650 nm, supporting GPON, EPON, and FTTH networks.
optic fiber splitter, Uncategorized

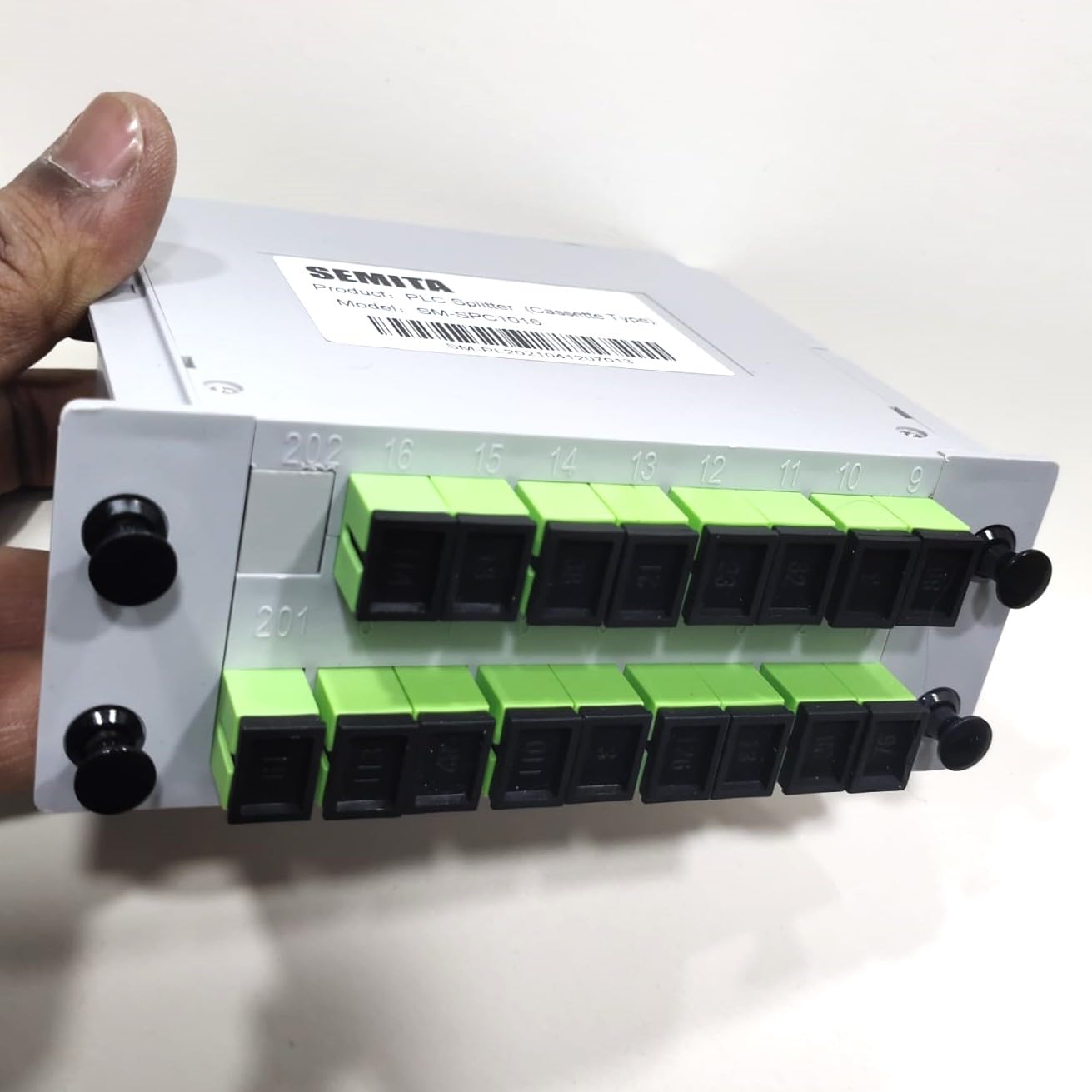

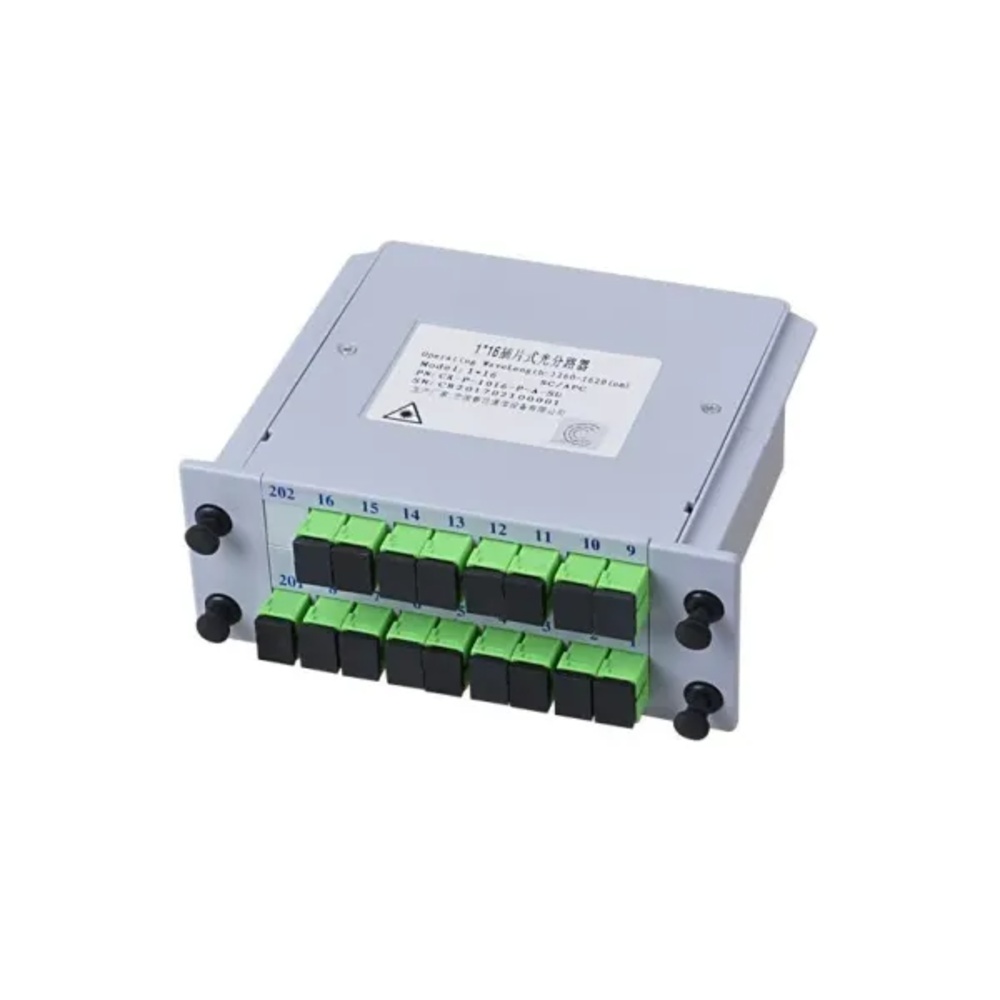

1X16 PLC (PLANAR LIGHTWAVE CIRCUIT) FIBER OPTIC SPLITTER WITH GREEN SC/APC SINGLE-MODE CONNECTOR
Original price was: ₹550.00.₹450.00Current price is: ₹450.00.
+ Free Shipping-
Connector Configurations: Terminated with green SC/APC (Angled Physical Contact) connectors to drastically minimize back-reflections and ensure clean single-mode signal transmission [Image_Context].
-
Network Deployment: Acts as a vital link component in FTTH (Fiber to the Home), GPON, and EPON networks to connect up to 16 end-users from a single central office line.
-
Physical Profile: A double-width modular slot cassette measuring approximately 5.12″ x 3.94″ x 1.97″ and weighing between 0.88 lbs to 1.10 lbs.
Availability: 1000 in stock
